Vertical Machining Center

1. Equipment Overview

The SPVMC-1 vertical machining centre is a metalworking machine custom-designed by Guangdong Suppor Company for KeJie Technology, specialising in milling, drilling, and tapping operations for small multi-hole components. It is suitable for machining small enclosures, covers, plates, housings, discs, and similar parts.

2. Equipment Features

• High-speed tool-changing system with rapid tool-change times

• High traverse speeds minimise idle movement time

• High-speed, high-efficiency machining capability makes it an excellent choice for batch production

• Advanced, renowned brand CNC system offering powerful and reliable functionality

• Superior human-machine interface for straightforward operation

SPVMC-1

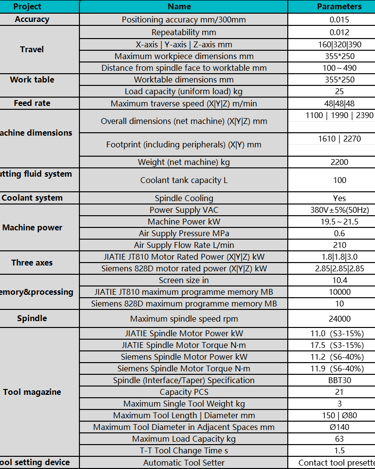

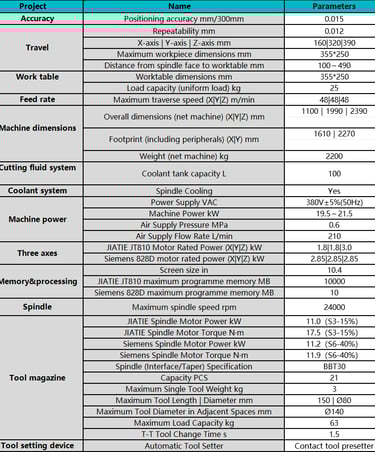

Specifications

1. Equipment Overview

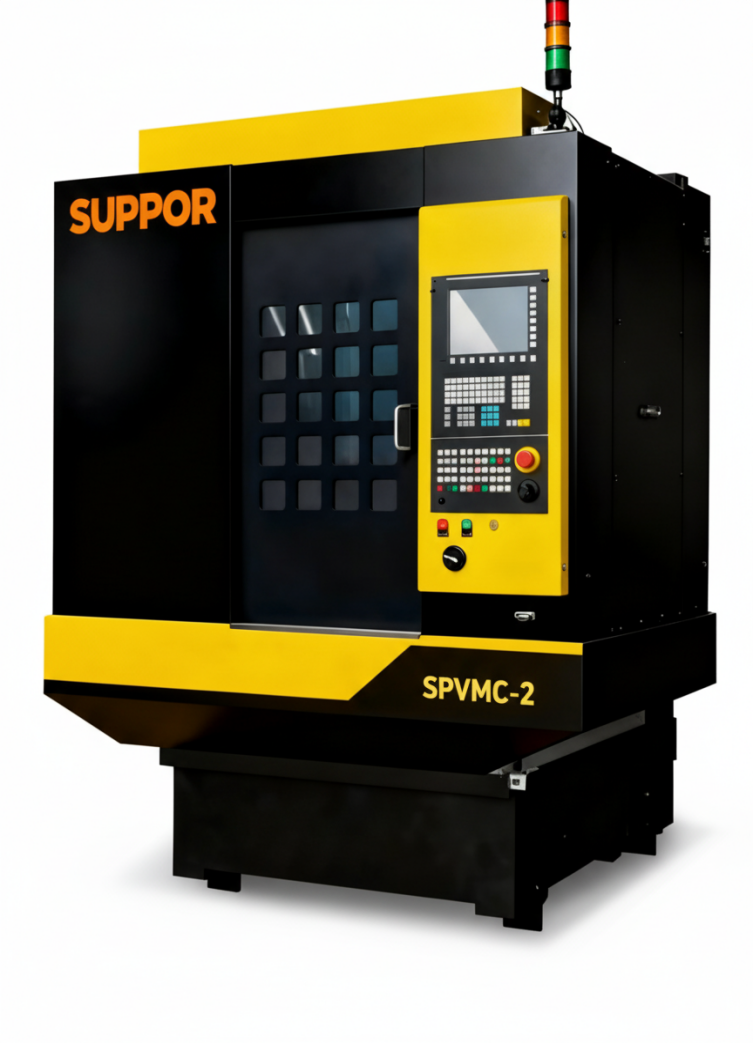

The SPVMC-2 vertical machining centre is a metalworking machine custom-built by Subei Company for Kejie Technology, specifically designed for milling, drilling, tapping and other machining operations on small, multi-hole components. It is suitable for processing small to medium-sized enclosures, covers, plates, housings, discs and similar parts.

2. Equipment Features

• High-speed tool-changing system with rapid tool-change times

• High traverse speeds minimise idle movement time

• High-speed, high-efficiency machining capability makes it an excellent choice for batch production

• Advanced, renowned brand CNC system offering powerful and reliable functionality

• Superior human-machine interface for straightforward operation

SPVMC-2

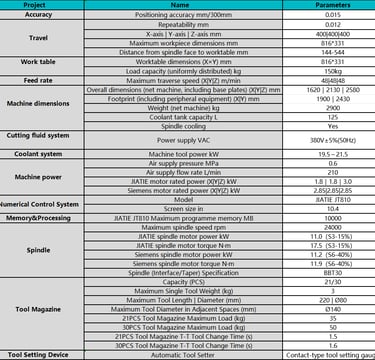

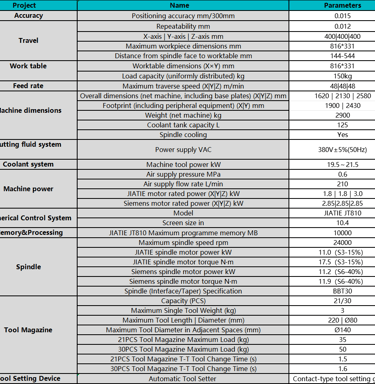

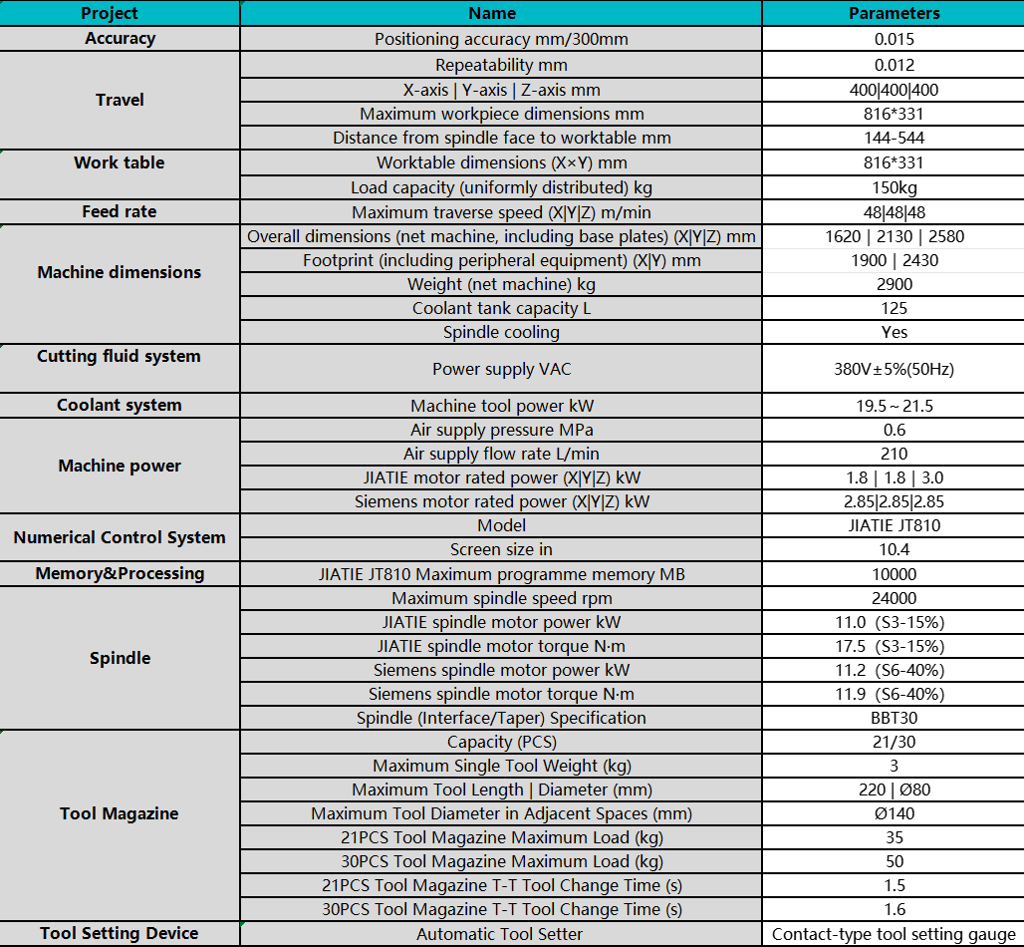

Specifications

1. Equipment Overview

The SPVMC-3 vertical machining centre is a customised model commissioned by Subei Company from Kejie Technology. Primarily designed for high-speed machining of small to medium-sized components and various moulds, this machine tool integrates multiple processing functions including milling, drilling, boring, and tapping. It is suitable for machining small to medium-sized enclosures, covers, discs, plates, housings, valves, cams, fixtures, and hardware components.

2. Equipment Features

• Excellent machine tool stability

• BBT40 spindle for superior cutting performance

• Fully enclosed compact external guard design with closer operating distance, significantly enhancing operational convenience

• Tool arm-type magazine accommodates high tool capacity with rapid changeover

• Angled machining chamber facilitates direct chip evacuation, minimising accumulation and reducing internal cleaning frequency

• Advanced, renowned brand CNC system delivering robust functionality and reliability

• Intuitive human-machine interface ensuring straightforward operation

SPVMC-3

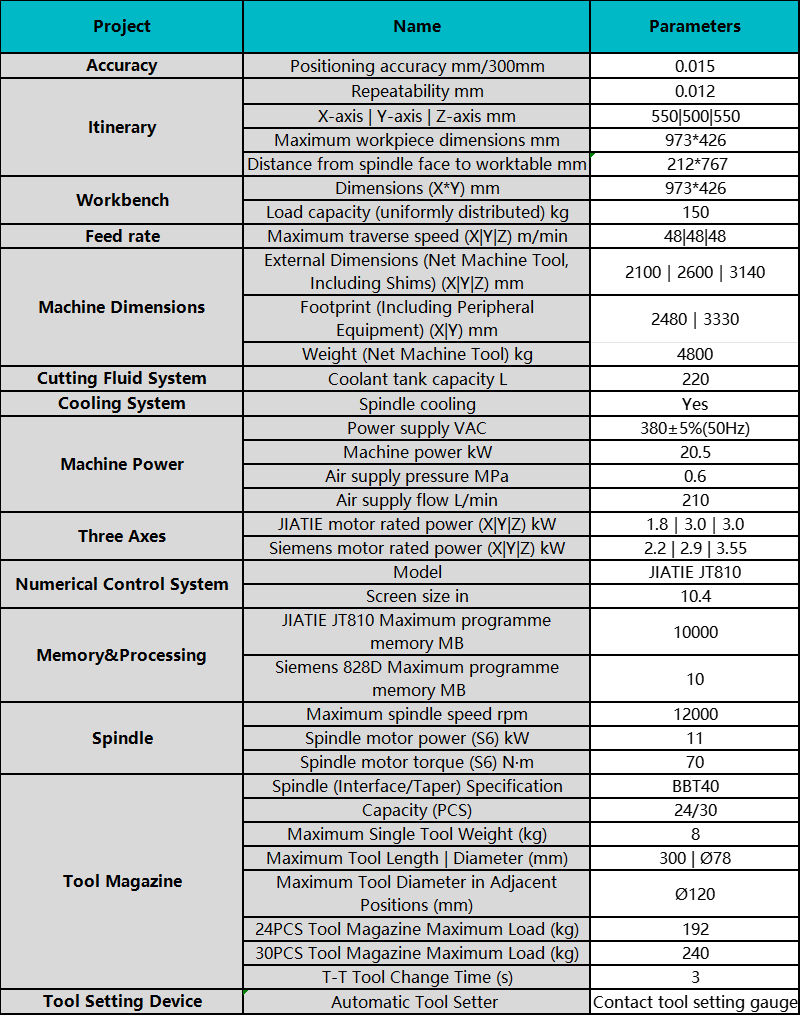

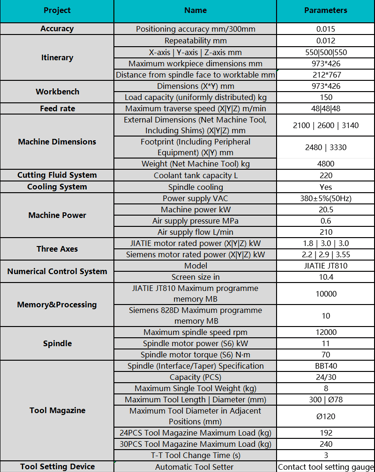

Specifications

1. Equipment Overview

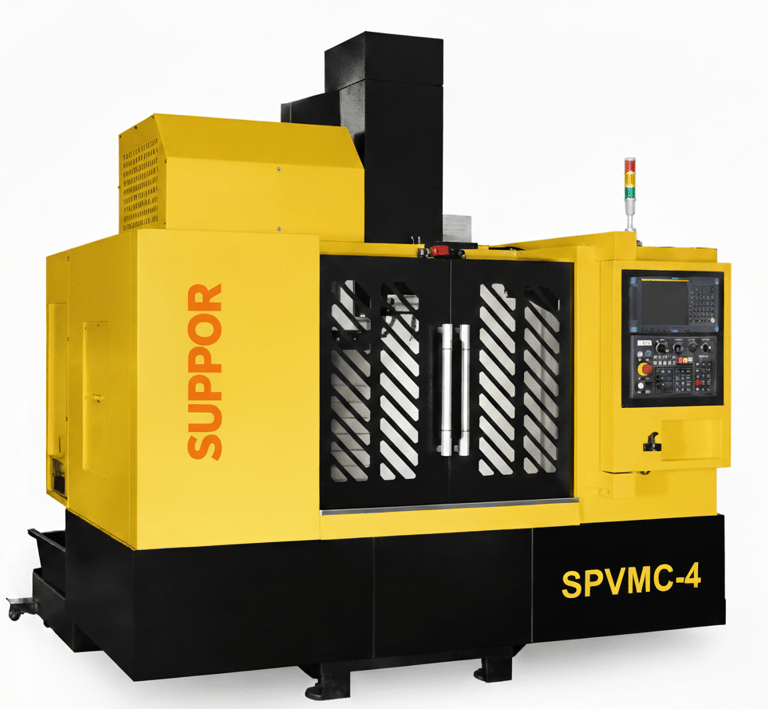

The SPVMC-4 vertical machining centre is a customised model developed by Subei Company in collaboration with Kejie Technology for high-speed multi-operation machining including milling, drilling, boring, reaming, and tapping. This machine tool is suitable for processing complex components such as small to medium-sized housings, covers, discs, plates, casings, valves, cams, fixtures, and hardware fittings.

2. Equipment Features

• Primarily designed for batch production machining

• Unique structural design effectively ensures the machine tool's overall dynamic performance

• Linear guideways on all three axes deliver low friction and low noise, guaranteeing sensitivity and stability

• Arm-type tool magazine with 24-tool capacity offers stable reliability, essential for product machining

• BT40 high-rigidity tool interface paired with high-efficiency motors for superior cutting performance

• Standard dual-side inclined rear chip evacuation with rear-mounted coolant tank for ergonomic efficiency

• User-friendly interface with fully enclosed machine guarding for convenient operation

SPVMC-4

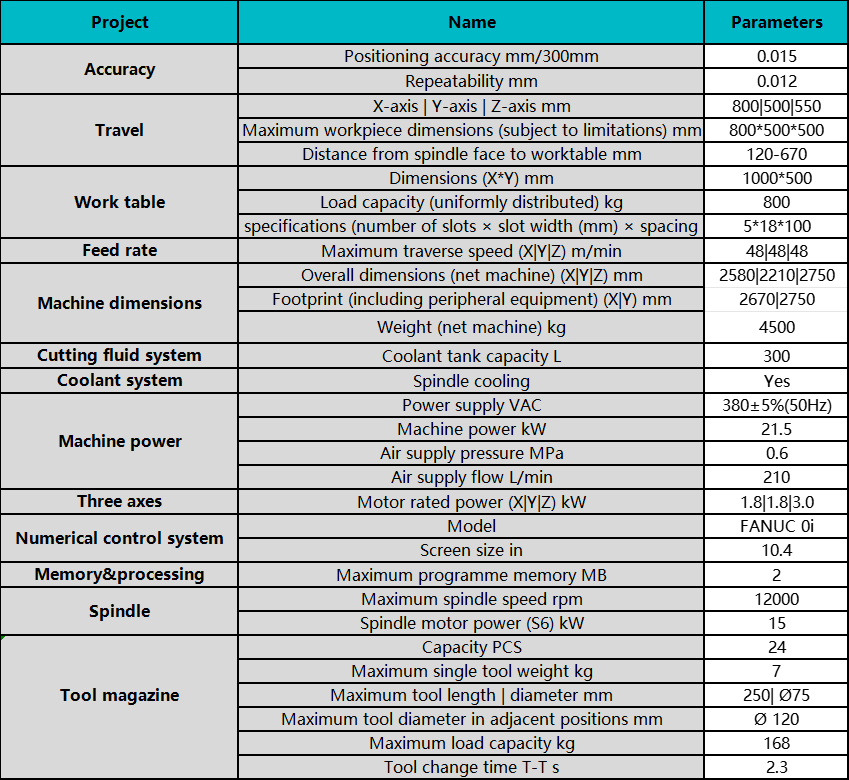

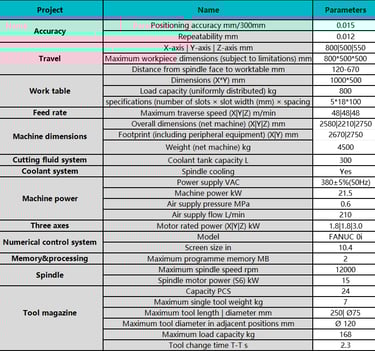

Specifications

1. Equipment Overview

The SPVMC-5 vertical machining center is a custom-designed machine from Kejie Technology, developed by Supo Company for high-speed machining of various processes including milling, drilling, boring, reaming, and tapping. This machine tool is suitable for batch processing of small and medium-sized boxes, covers, discs, plates, shells, valves, cams, jigs, hardware parts, and the production of various molds. It is also suitable for machining complex parts.

2. Equipment Features

• Unique design structure effectively ensures the overall dynamic characteristics of the machine tool.

• All three axes adopt linear guide design, resulting in fast acceleration and deceleration response and effectively improving the machining efficiency of the machine tool.

• A stable base and column, combined with lightweight motion axis components, effectively ensures the stability of the machine tool during high acceleration and deceleration movements.

• The tool arm-type tool magazine has a capacity of 24 tools, is stable and reliable, and is essential for product processing.

• Equipped with a high-performance CNC system, it ensures the stability of machine tool control and guarantees the CNC machining functions and auxiliary functions required by the user.

• The machine tool features an internal twin-screw rear chip conveyor and a rear-mounted water tank design, which is user-friendly and highly efficient. Optional features include an external chain plate chip conveyor and a central water outlet filtration system, adapting to various working conditions and providing good cutting fluid for workpiece machining.

• Excellent human-machine interface design; the entire machine is fully enclosed for easy operation.

• Accurate Horizontal Machining Multi-Angle Large Size Machining

• Large-size polyhedral part machining

• aluminum,iron casting, steel,stainless steel,titanium alloy, etc

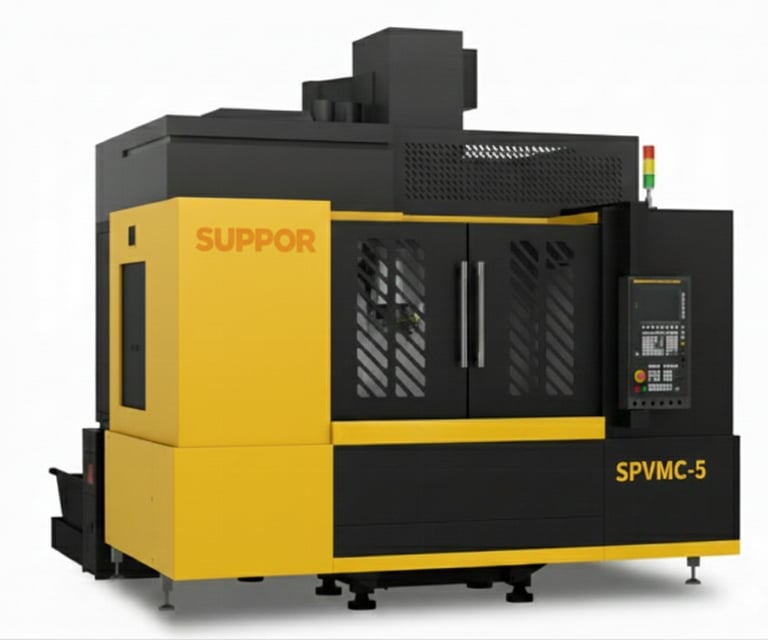

SPVMC-5

Advantages of The Product

Equip spindleand transmission parttemperature control system

Equip with various optionssuch as ATC

Bears heavy cuttingload

Effectively control thermal deformation during high-speed operation,ensure machinestability.

Rotary table,through spindle coolant,etc,toincrease factory operation efficiency,

Improves machining efficiency and chipre moving performance.

Features of The Product

Designed in advanced concept, can meet small or medium scale production, set a variety function in one, multi-axis and multi-process processing is achievable, improve production efficiency and processing accuracy.

Compact structure, small footprint, easy layout and moving in the workshop, reduce production costs

Integrating with milling, drilling, tapping and other processing functions, high precision processing of a variety of shapes and sizes workpiece can be achievable through the replacement of tools and fixture.

High degree automation, equipped with automatic tool change device to change the tool automatically during the processing, that improves the processing efficiency.

Advanced NC system, our latest self-developed model JT- 810 applied, is with friendly man-machine interface and powerful programming functions.
